Direct-drive, High-speed, 1-needle, Lockstitch Machine with Automatic Thread Trimmer & Auto - Lifter Motor Driven |
 |
| DDL-8000A Series |   |
The DDL-8000A Series maintains JUKI's established seam quality and is provided with narrowed-down essential and simplified functions. It helps improve the work efficiency through operator assistance with its audio guidance.
Voice guidance for assisting the operator
This sewing machine is provided as standard with the voice guidance with clock function
Production support function
The target number of products, work progress (current number of products produced, achievement rate) and the operating rate of the sewing machine are displayed on the control panel provided that the initial data have been properly set.

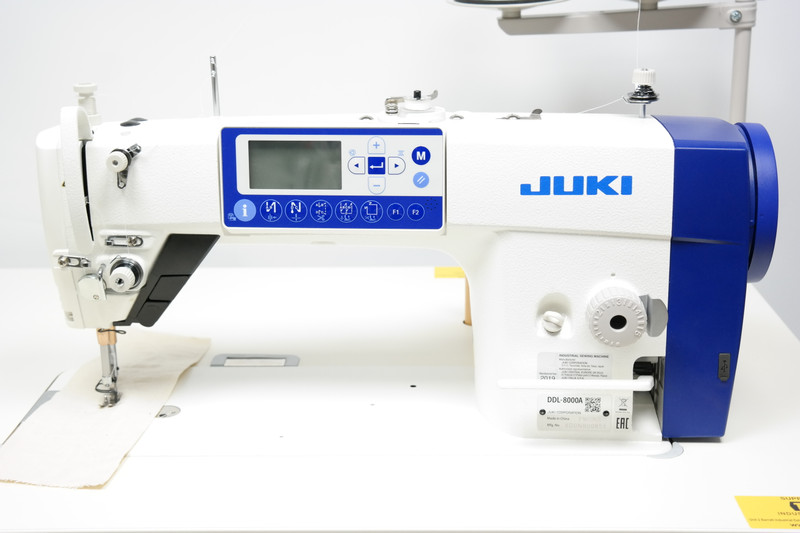

DDL-8000A
Click to Enlarge the image
| Model name | DDL-8000AS-MS | DDL-8000AS-SH | DDL-8000AB-MS | DDL-8000AB-SH |
|---|---|---|---|---|
| Specification | Standard type | Shorter-thread remaining type | ||
| Application | Medium-weight | Heavy-weight | Medium-weight | Heavy-weight |
| Lubrication | Semi-dry | Minute-quantity lubricationy | Semi-dry | Minute-quantity lubricationy |
| Max. sewing speed | 5,000sti/min | 4,500sti/min | 5,000sti/min | 4,500sti/min |
| Max. stitch length | 5mm | |||
| Needle | DB×1 (#11) #9～#18 | DB×1 (#21) #20～#23 | DB×1 (#11) #9～#18 | DB×1 (#21) #20～#23 |
| Lift of the presser foot | By hand : 5.5mm, Auto : 1st stage 8.5mm, 2nd stage 13.0mm, By Pedal: 15mm |
|||
