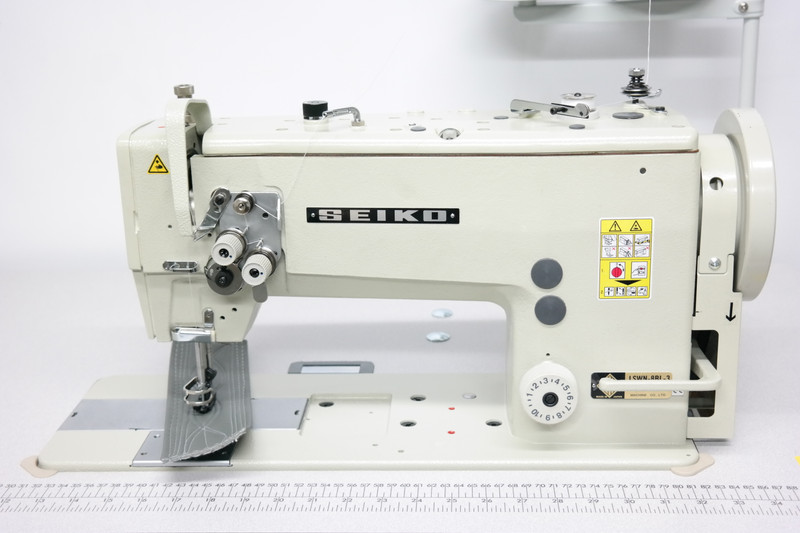

Seiko LSWN-8BL-3 Walking Foot Needle Feed Lockstitch Straight Stitch Industrial Sewing Machine
Whats included: head, energy motor, wheel stand, table and cotton stand.
Comes as standard with an energy saving speed adjustable silent motor, proven to save upto 20% electricity when compared with a continuos running clutch motor.
LSWN single needle series.
High speed, large vertical axis hook, reverse stitch, compound feed and walking foot, lockstitch machine.
Applications:
For sewing medium to heavy weight fabrics, leather, vinyl, synthetics and laminated and coated materials.
Suitable for sewing such as boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments and orthopedic appliances.
Features:
Improved exposure of arm-feeding mechanism components which provides safety environment.(mechanical part of alternating presser foot, foot lifter mechanism(knee lifter) and presser foot spring relevant parts)
Plain needle drop area/adoption of open/close simplified face plate which provides wide-ranged movement of sewn material.
Adoption of feed-adjusting dial which eases determination process of stitch length.
Advanced penetration required for sewing of thick material/adoption of large pulley(O.D. 150mm) which enables the needle bar to be positioned properly.
Elongated work space/adoption of built-in bobbin winder which no longer require mounting process.
Adoption of die-casting oil pan of which by-knee-lifter is built-in, aiming at efficient installment
Standard equipment of long stitch (max.10mm) suitable for thick material and amount of alternative presser lift (max. 6mm) ( LSWN-8BL-3 ONLY )
Large vertical axis hook (Automatic hook lubrication).
Safety clutch prevents the hook from being damaged.
Available in "THICK THREAD VERSION"(for heaviermaterial). Add suffix "TA" when ordering.
Built-in bobbin winder makes it possible to wind the bobbin thead during sewing operation
Specifiation:
Single Needle
Straight Stitch
Walking Foot
Needle Feed
Large Capacity Bobbin
Sewing Speed (2800 spm)
Stitch Length (0 - 10mm)
Presser Lift Height (8.5mm/16mm)
Needle System (135x17)
Knee Lifter
Reverse/Back Tack
Single Phase 240v 13 amp (can be used at home)
Accessories:
Needles
Bobbins
Oil
Manual
Soft Cover
Spanner
Screwdriver
This machine comes with a 12 month back to base guarantee.
Due to the size and weight of this machine please call 0208 574 1750 for information on delivery.
